3000 SERIES
Optimize Value Recovery for Automatic GradingThe chroma+scan 3000 Seriesย offers high-density 3D lumber profiling at fast scan rates for transverse applications. The chroma+scan 3000 platform is scalable, and allowsย you to applyย 2D color visionย orย tracheid detectionย to optimize value recovery.
DOWNLOAD DATASHEET
๊ฐ๋จ ์ฌ์
| Model | 3155 | 3250 | 3350 |
|---|---|---|---|
| Profile Scan Rate (Hz) | 2000 | 2500 | 2000 |
| Resolution X (mm) | 8.000 | 8.000 | 8.000 |
| Resolution Z (mm) | 0.127 | 0.127 | 0.127 |
| Color Profile Resolution XY (mm) | N/A | N/A | 1.0 x 0.5 |
| Tracheid Scan Rate (Hz) | N/A | 500 | N/A |
| Tracheid Resolution X (mm) | N/A | 8.00 | N/A |
| Field of View (mm) | 610 | 610 | 610 |
| Clearance Distance (CD) | 508 | 508 | 550 |
| Measurement Range (mm) | 203 | 203 | 150 |
| Laser Lines | 4 | 4 | 4 |

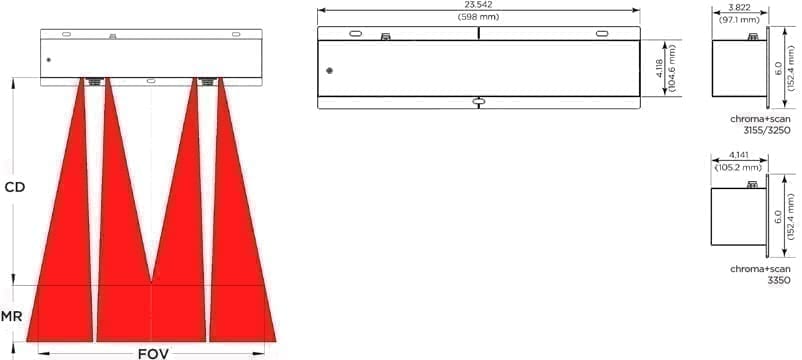

MECHANICALS
