Leverage Sub-Micron Scanning Power

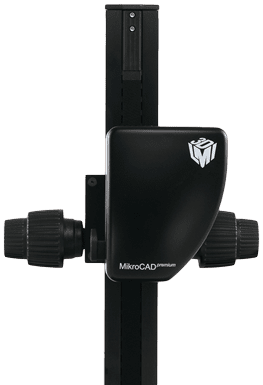

MikroCAD is the first sub-micron 3D surface metrology system ever to use structured light fringe projection profilometry for sub-micron level scans of surface micro-textures. MikroCAD's stunning resolution allows you to inspect fine edges on parts such as cutting tools, then analyze the results with industry standard measurement tools and report with highly effective visualizations.
DOWNLOAD DATASHEET
SPEZIFIKATIONEN
| Model | Premium 1.6x1.2 | Premium 13x10 | Plus 1.7x1.4 |
|---|---|---|---|
| Resolution X (μm) | 1.2 | 8 | 0.7 |
| Resolution Z (μm) | 0.1 | 1 | 0.07 |
| Field of View (mm) | 1.6 x 1.2 | 13 x 10 | 1.7 x 1.4 |
| Measurement Range (mm) | 0.8 | 3 | 0.5 |
GET THE FULL SPECS

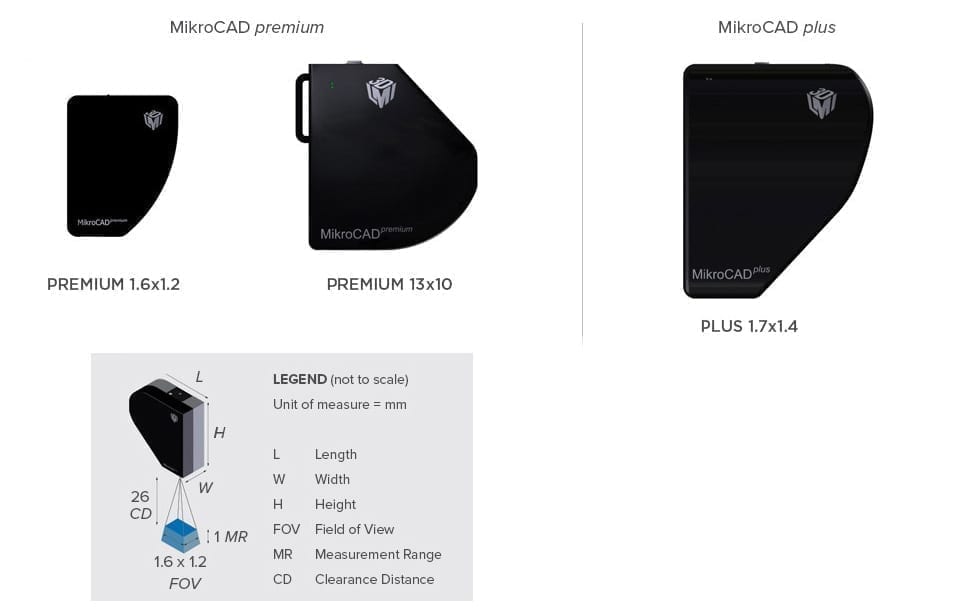

MIKROCAD DIMENSIONS
